Brand
|
Younus
|
|
Model
|
BTB80-C custom-made model
|
|
5Product name
|

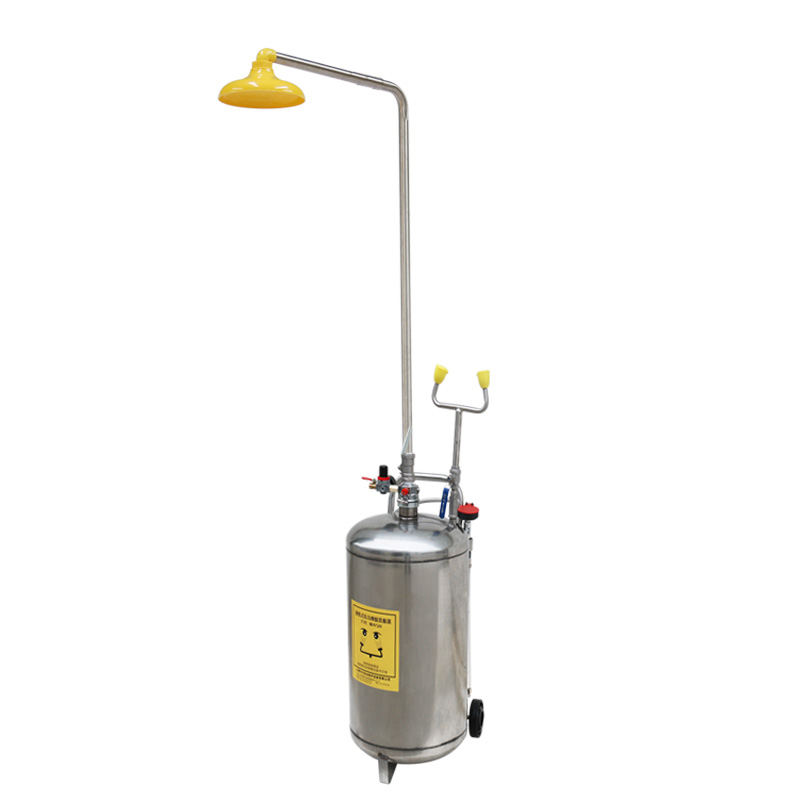

80L Portable Emergency Eye Wash Station
|
|
Design and manufacturing standards
|
ANSI Z358.1-2014
|
|
Main body material
|
Stainless steel
|
|
Function
|
Eye washing
|
|
Working environment temperature
|
0~50℃
|
|
Applicable medium
|
Normal temperature drinking water or water that meets hygienic standards
|
|
Specially service
|
OEM,ODM
|
|
The gross weight
|
50KG
|
|
Package size
|
600mm*600mm*1200mm
|
Performance characteristics: without fixed installation, the configuration roller can be moved to the use place at any time according to the actual needs, and it is suitable for use in places where external water sources are not convenient.
Usage: when you need to wash your eyes, you will open the eye-wash switch clockwise, and the water will be automatically ejected. The dust cover will be automatically washed away with the flow of water, and then turn off the washing switch after using counterclockwise to reset the dust cover.
When using the shower, pull out the extractor and press the switch handle to flush the injured part.
Release the switch handle after use. The water source is closed.
Note: the eye washer must always be connected to the gas source state, and the pressure relief valve will be adjusted to 0.06 Mpa, and the risk of damage to the human body will be caused when the pressure exceeds 0.06Mpa
Applicable places: widely used in nuclear power, power station, pharmaceutical, medical, chemical, petroleum, ship, electronic, smelting, printing and dyeing, education and scientific research, etc
Special reminder: every 6 months must clean the liquid container, with clean water preservatives (water preservatives need to be purchased separately), and can ensure the effective use of the eye-washer for 120 days.
