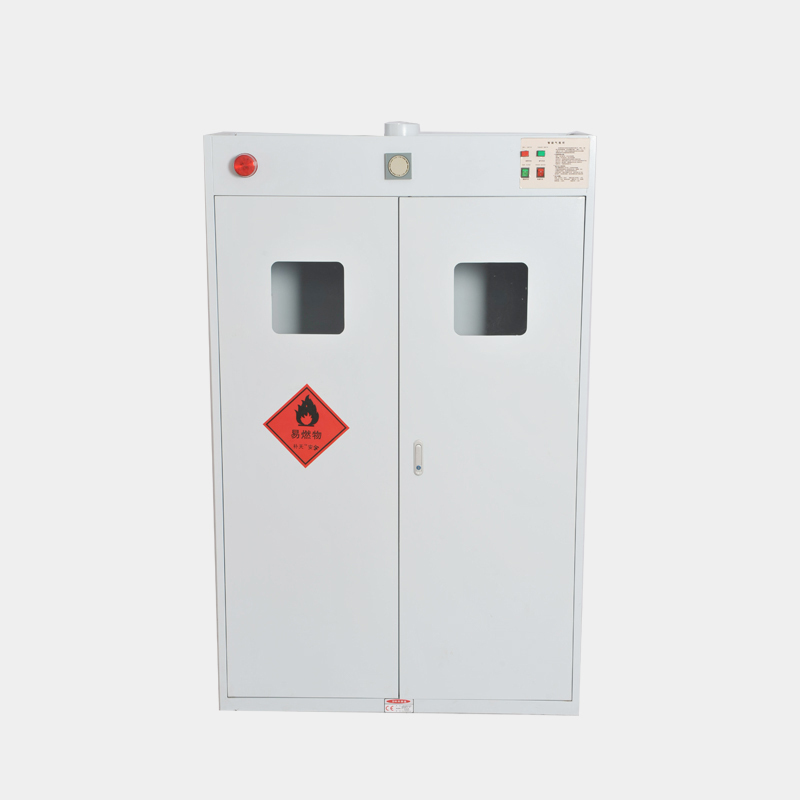

Material: 1.0mm high quality cold-rolled steel plate, the surface of which is subjected to strict acid cleaning and phosphating treatment, and then the epoxy resin electrostatic spraying can be treated with corrosion resistance and heat resistance.
Both inside and outside of the cabinet are painted with durable, lead-free epoxy resin paint, which increases the ability of the anti-chemical products to the maximum extent.
Switch mode: double door, manual.
Hinge: with removable hinge, easy to remove, front window, transparent glass, easy to observe the inside of the cabinet.
A PASS hole is provided on the side of the cabinet to ensure the flow of gas inside the cabinet.
Fixed chain: internal fixed chain is used to prevent cylinder dump.
Pedal: the bottom of the cabinet is equipped with adjustable pedals to facilitate the handling of cylinders.
Hold hands: adopt the embedded high strength pull hand.
Sound alarm system: microcomputer timing switch, high-sensitivity probe to detect air leakage automatic ventilation alarm.
When sensors detect gas leakage inside ark, automatically triggers the red light flashing and alarm hum, have the effect of remind staff, effectively prevent because of staff to the naked eye can’t see gas leak, and cause serious accidents.
Automatic ventilation.
Alarm value: gas 0.3% plus or minus 10%;
Liquefied petroleum gas 0.0.3% plus or minus 10%;
Natural gas 0.5% or minus 10%;
Working temperature: – 10 ℃ to 40 ℃
Automatic exhaust system: when the sensor detects the contained in the gas leak and alarm at the same time, the top of the wind the opportunity to work automatically, through the gas exhaust duct discharge outside, to ensure the safety of working area.
High visibility label, corrosion resistance.
Note: the special alarm device can be selected.
Alarm device can be identified: combustible gas such as methane, acetylene, gas, etc.
